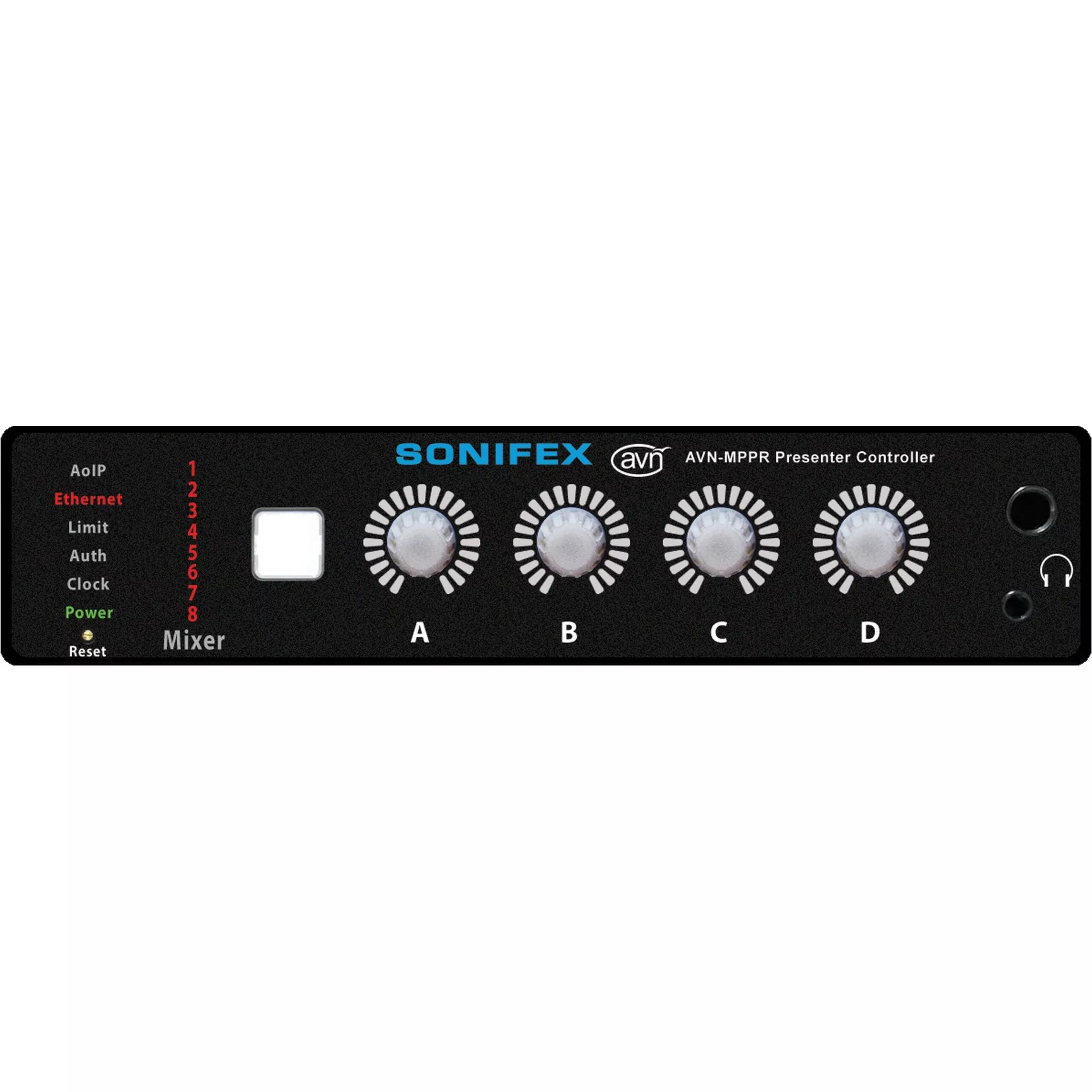

Sonifex AVN-MPPR 4 Channel Presenter Remote Controller
Thepresenter mixer system allows on-air presenters to adjust the audio levels fedto their radio or wired IEM systems, whilst also allowing Sound Control Roomoperators to adjust the levels remotely. The system consists of 3 types of unitall connected on a common Ravenna Audio over IP (AoIP) network with added audiosources derived from Ravenna based AoIP mixers or input portals. Setup andcontrol can be provided via webpages and/or 3rd party applications. The systemuses mono audio throughout.
Key Features
- 4 rotaryencoders control the 4 channels of a selected virtual mixer
- 1, XLR, plus” & 3.5mm headphone outputs
- Software-configurableoutput level control (one for each headphone output) to set the attenuation ofthe signal
Virtual GPO - IP addressreset
- Can bemounted on a standard microphone screw thread or under a desktop using optionalaccessories
TechnicalSpecifications
PoE Power
Standard
802.3at Type1
Class
3
PD Power Range
6.49 W to12.95 W
Typical PSE Power Usage
14 W
Max PSE Power Usage
15.4 W
Physical
Dimensions: (Raw)
20cm (W) x15cm (D) x 4.2 (H) (1U)
7.9″(W) x 5.9″ (D) x 1.7″ (H) (1U)
Dimensions (Boxed)
28cm (W) x19cm(D) x 9cm(H)
11″ (W)x 7.5(D) x 3.5(H)
Weight
Nett: 0.6kgGross: 1.13kg
Nett: 1.3lbsGross: 2.45lbs
