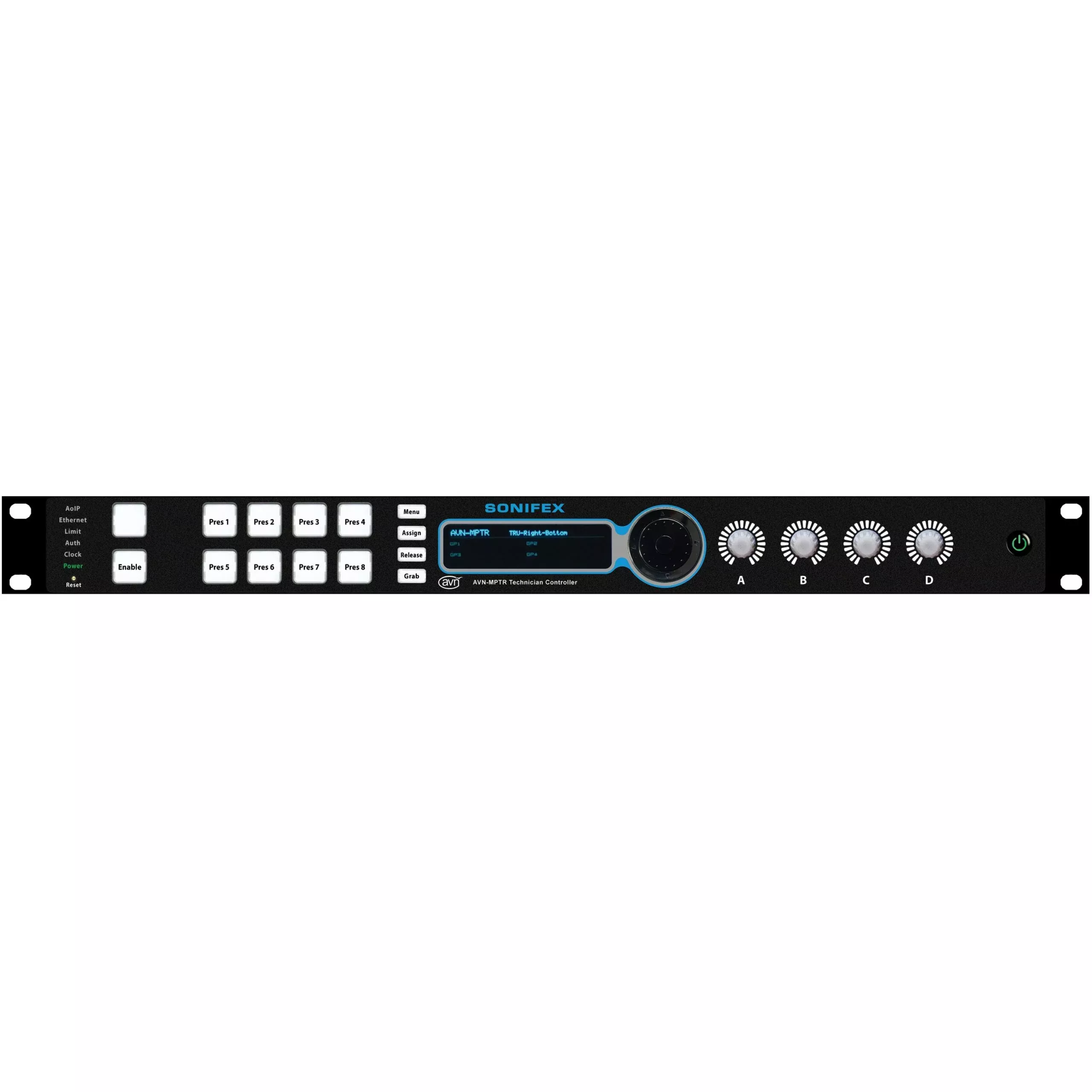

Sonifex AVN-MPTR Technician Remote Controller, Rackmount
Thepresenter mixer system allows on-air presenters to adjust the audio levels fedto their radio or wired IEM systems, whilst also allowing Sound Control Roomoperators to adjust the levels remotely. The system consists of 3 types of unitall connected on a common Ravenna Audio over IP (AoIP) network with added audiosources derived from Ravenna based AoIP mixers or input portals. Setup andcontrol can be provided via webpages and/or 3rd party applications. The systemuses mono audio throughout.
Key Features
- Allowsselection of each of 8 VMs and remote adjustment of volume controls
- 8 virtualmixer select buttons
- 4 x rotaryencoders showing input level metering and output volume control
- GPO enableand activation buttons
- 1Gb PoEEthernet and power using Neutrik Ethercon
- Status LEDsand OLED display
- 10 x GPIOports
- Configuredvia webserver
TechnicalSpecifications
PoE Power
Standard
802.3at Type1
Class
3
PD Power Range
0.44 W to12.94 W
Typical PSE Power Usage
7 W
Max PSE Power Usage
15.4 W
Physical
Dimensions: (Raw)
48cm (W) x15.0cm(D) x4.2cm (H) (1U)
19″(W)x 5.9″ (D) x1.7″ (H) (1U)
Dimensions (Boxed)
56cm (W) x29.5cm (D) x 16.5cm (H)
22″ (W)x 11.6″ (D) x 6.5″ (H)
Weight
Nett: 1.9kgGross: 2.8kg
Nett: 4.2lbsGross: 6.2llbs
