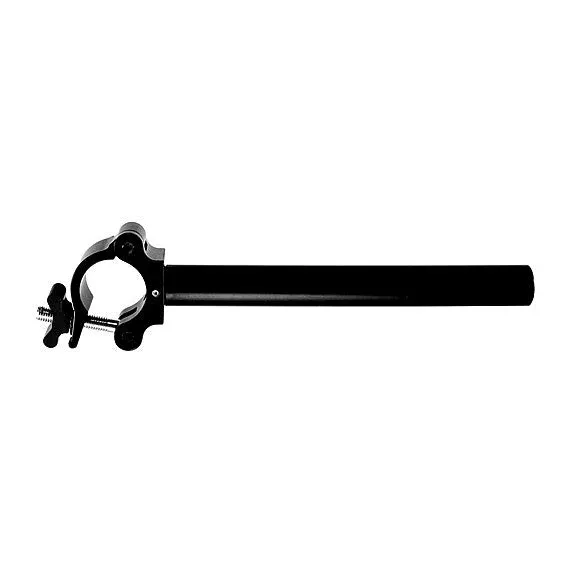

Overview of The Light Source – Mega-Sidearm 18 inch fixed length Black
Mega-Sidearm Fixed Length
Available in 12″, 18″, 24″, 30″ and 36″ Lengths. Black or Mill finish.
The Fixed Length Mega-Sidearm is a stable 2″ Mega-Coupler attached to a 1.315″ OD 1″ Schedule 80 pipe.
The Mega-Sidearm Coupler connects to 1 1/4″ pipe (1.66″ OD), 1-1/2″ pipe (1.9″ OD), and 2″ OD tube.
Working Load Limit is 300 lbs. @ 12″ Length.
Working Load Limit is 200 lbs. @ 18″ Length.
Working Load Limit is 150 lbs. @ 24″ Length.
Working Load Limit is 120 lbs. @ 30″ Length.
Working Load Limit is 100 lbs. @ 36″ Length.
A Mega-Sidearm Slider can be purchased separately to fasten directly to the Mega-Sidearm. The slider is 1″×2″×3″ and has two drilled and tapped 1/2″ holes. One for fastening to the light fixture and one for position locking.
Music City Canada is an authorized reseller for The Light Source products.Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
