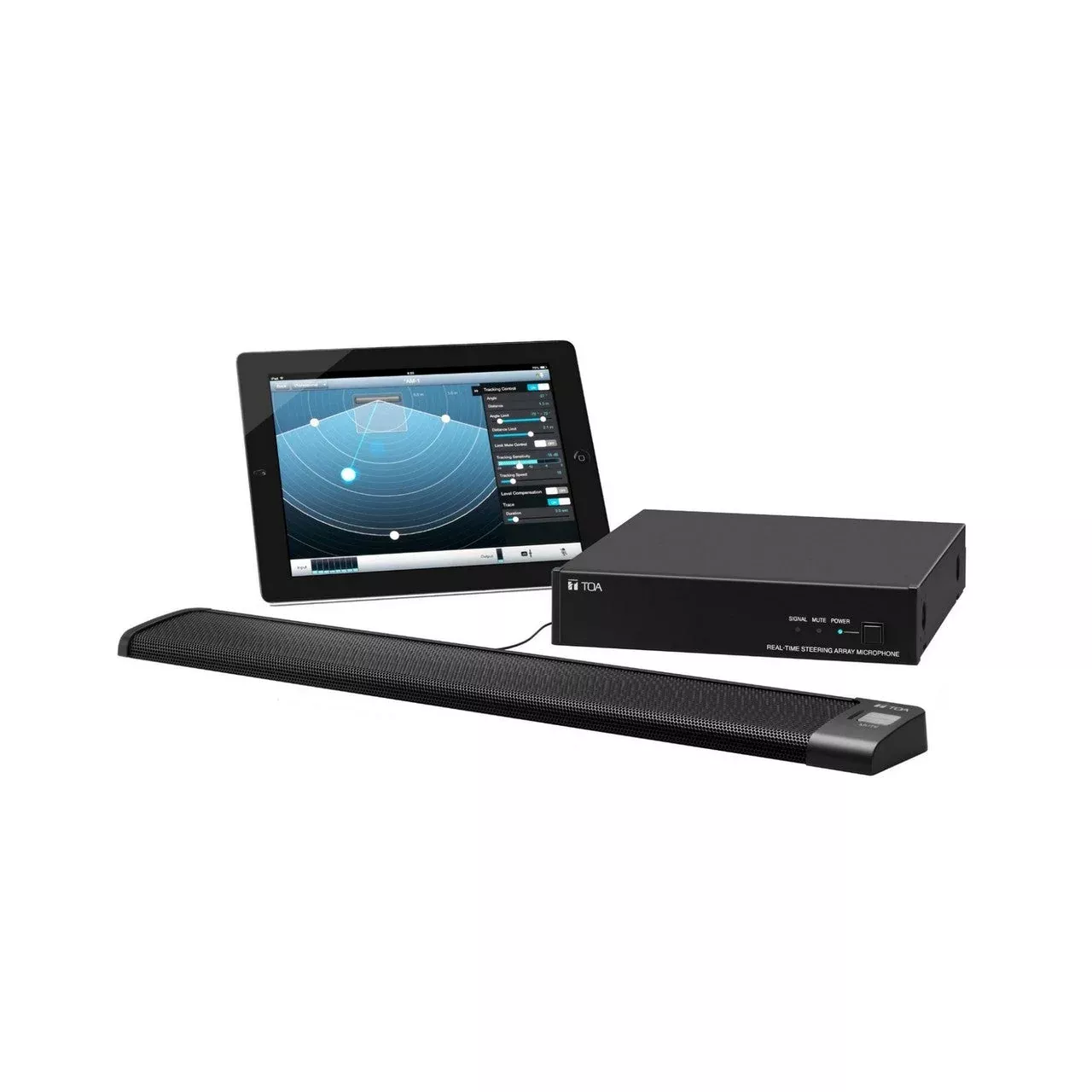

TOA AM-1BMK2 8 Element Real Time Steering Microphone Array System Black
The AMIOReal-time Steering Array Microphone is the newly upgraded premier flagshipconferencing microphone in TOA’s meetingIO Series. AMIO delivers the mostnatural kind of speaking and conversation experience for corporate speeches,company meetings, and team collaborations between remote locations. That samebenefit can be extended to executive offices, houses of worship, court rooms,higher education classrooms, and even theatrical venues. With a completelycontrollable area of acceptance, AMIO offers solutions to many challenges suchas a presenter’s limited range of motion, speech volume drop-offs, acousticalanomalies, background chatter, and many others. Because AMIO knows exactlywhere the presenters are at all times it can literally dial out unwanted soundwhile maximizing the fidelity and intelligibility of the speakers’ voices.
Key Features
- Color: Black
- 8-elementmic array provides an extremely narrow (50)polar pattern for tight pickup and maximum gain before feedback
- Mic controllerfeatures Power and Signal LED indicators, low-frequency cutoff switch, analogline output (terminal block/XLR), output level switch (-50dB; -10dB; +4dB), microphoneinput (mini XLR: TA-3 connector). Chassis single space, half rack
- Voice captureup to 20ft and tracking ranges up to 180 degrees
- Mechanicalmute switch with LED indicator (green for “ON” and red for “MUTE”) which can bedisabled via iPad app or browser where necessary
TechnicalSpecifications
Power Source
24V DC(supplied from the Control Unit)
Microphone
Unidirectionalelectret condenser microphones
Directivity Angle
Horizontal50 (800 Hz – 18 kHz, Array mode), 180 (Cardioid mode)
Vertical: 90
Frequency Response
150 Hz – 18kHz
Maximum Input Sound Pressure
100 dB SPL
Operation
Mechanicalmute switch
Indicator
Microphonestatus indicator (output: green, mute: red)
Microphone Cable
Low-capacitance(AES-EBU) shielded twisted pair cable 10m (32.81 ft) with connector equivalentto TA-3
Maximum Cable Length
70 m (229.66ft) (use of the AESEBU cable)
Finish
Body,punched net: Surface-treated steel plate, black, 30% gloss
Side cover:ABS resin black
Dimensions
483.9 (W) x22.1(H) x 64.9 (D) mm (19.05″ x 0.87″ x 2.56″) excluding cable
Weight
1.2 kg (2.65lbs.)
