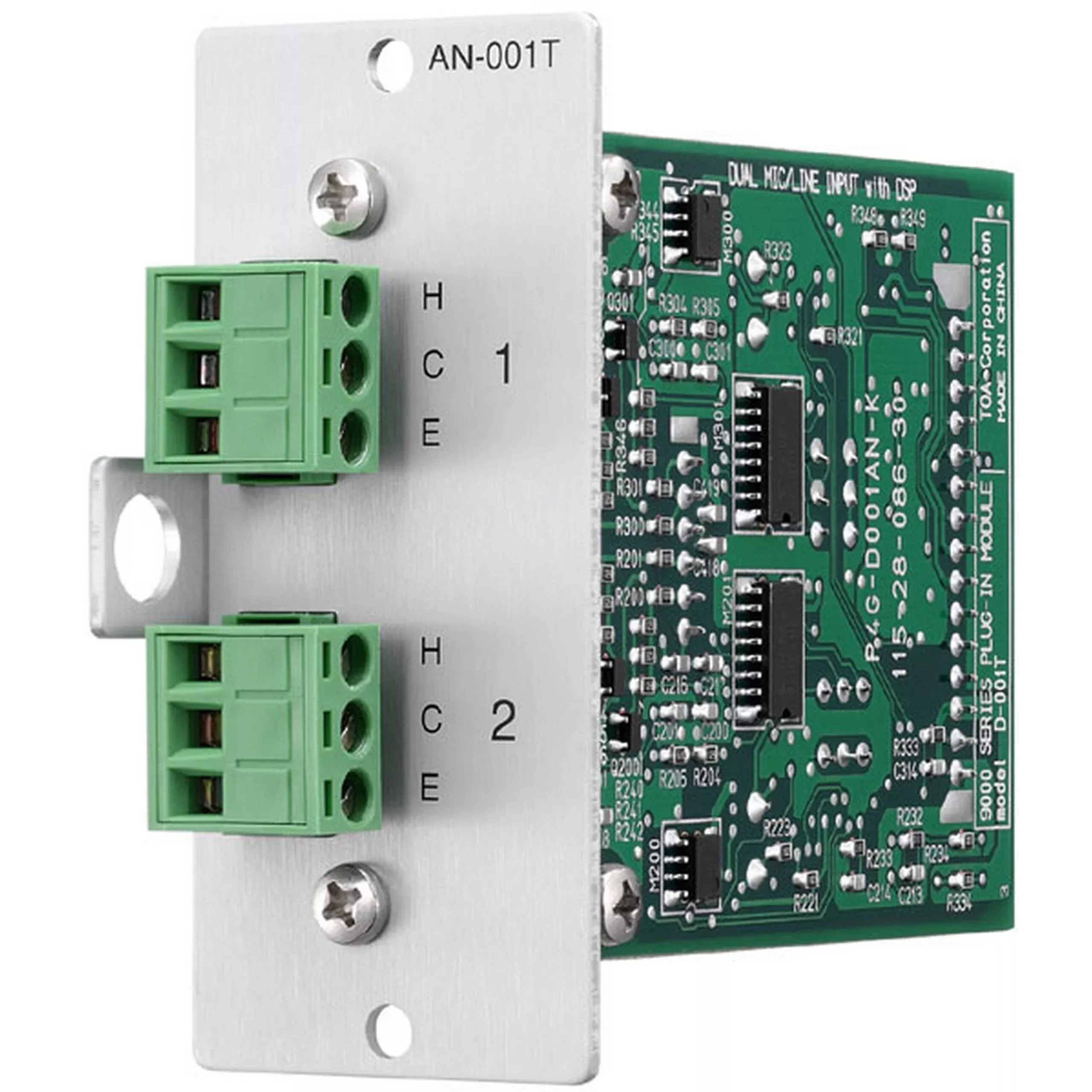

TOA Electronics AN-001T Ambient Noise Controller Module
The AN-001Tis a plug-in module of 2-channel ambient noise detector designed for use withthe 9000 series amplifiers. It automatically adjusts the output volume inresponse to the change of ambient noise level. The AN-001T can handle inputsignals from microphone level (-60 dB) to line level (-10 dB) by controllingthe gain in 9 steps. Phantom power (+24 V) can be supplied for condensermicrophone use.
TechnicalSpecifications
Power Source
+24 V DC,-24 V DC, +6 V DC
Current Consumption
20 mA (at+24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)
Input
Sensor input(Ambient noise sensor microphone input): 2 channels,
3 k (whenthe phantom power is ON)/10 k (when the phantom power is OFF),
electronically-balanced,removable terminal block (3 pins)
Input Sensitivity
-60, -54,-48, -42, -36, -30, -24, -18, -10 dB* (selectable)
Phantom Power
+24 V DC
A/D Converter
24 bit ADC
Sampling Frequency
48 kHz
Ambient Noise Control Function
Sensor inputreference level adjustment function
Maximumoutput signal level control: -15 to 0 dB
Minimumoutput signal level control: -18 to -3 dB
Sample timesetting: 10 s, 15 s, 20 s, 30 s, 1 min, 2 min, 3 min, 5 min
Gain ratiosetting (Ambient noise: Output signal level)
Finish
Panel:Aluminum, hair-line
Dimensions
35 (W) – 78 (H)- 91.5 (D) mm
Weight
82 g
Accessory
Removableterminal plug (3 pins) -2, Module mounting screw -2
Option
Ceilingmount microphone: AN-9001
