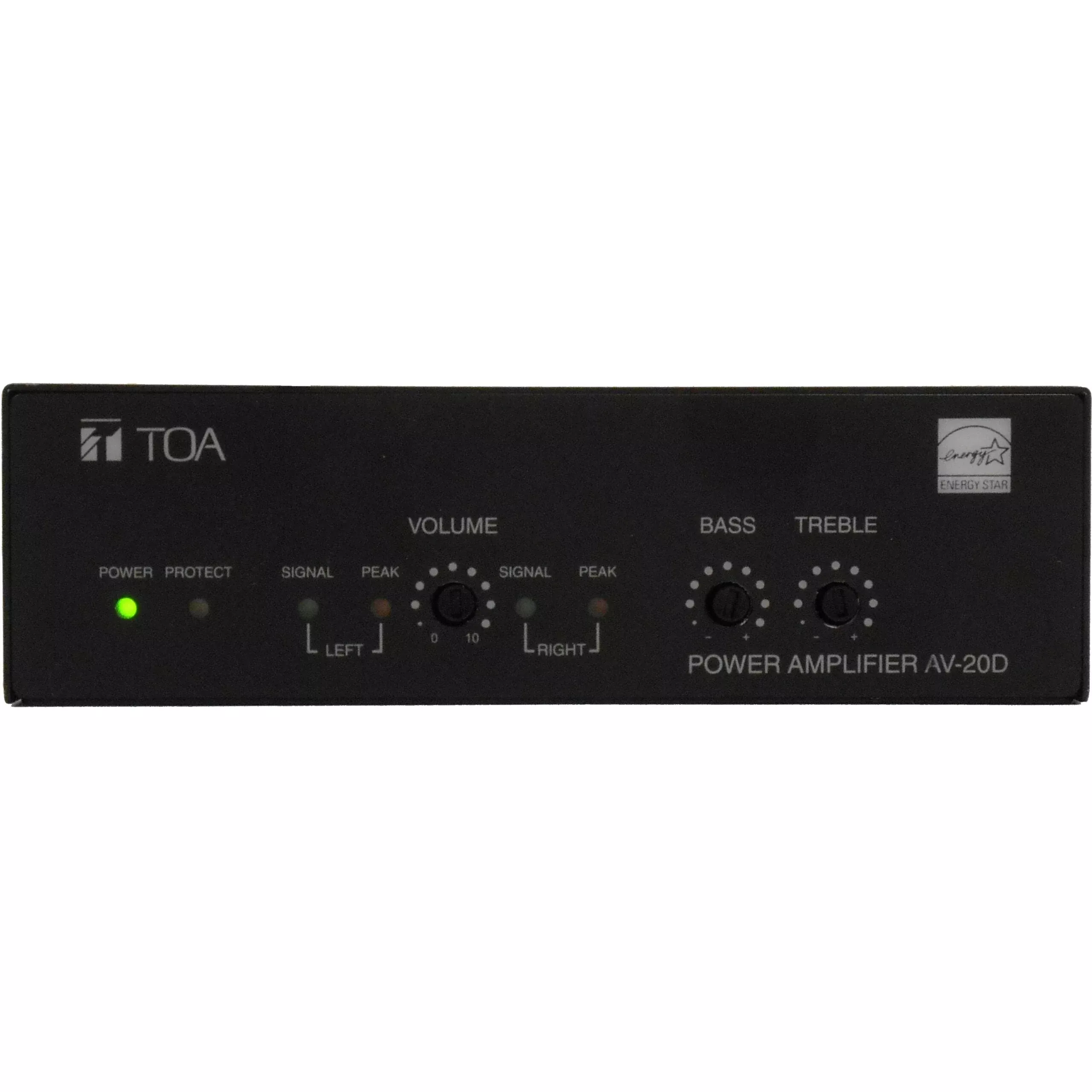

TOA Electronics AV-20D 2 x 20W Micro Amplifier
The AV-20Dintroduces a new standard in small amps for plenum use. With ultra-compactsize, a flexible compliment of inputs & power configuration, controlfeatures and carrying both UL2043 & Energy Star 3.0 certification, theAV-20D is an ideal choice for corporate meeting rooms, POS/signage & kiosksor any place where space and placement limitations are a factor.
TechnicalSpecifications
Power Source
100V-240VAC, 50Hz/60Hz
Rated Output
15W x 2 @ 8Ohms, 20W x 2 @ 4 Ohms, 40W x 1 @ 8 Ohms (Bridge)
Power Consumption
63W
Idle Power Consumption
<6 Watt
Power Consumption in Power Saving Mode
<1 Watts
Frequency Response
20Hz to20KHz -3dB (Line1 input with transformer:100Hz to 20KHz)
Total Harmonic Distortion
Less than 0.15%
Input
Line 1:-10/-20dB* (selectable), 10 K ohms, transformer-balanced, removable terminalblock
Line 2:-10/-20dB* (selectable), 10 K ohms, unbalanced, 3.5mm stereo jack
Line 3:-10/-20dB* (selectable), 10 K ohms, transformer isolated unbalanced, RCA jacks
Output
Speakeroutput, removable terminal block (4P)
Tone Control
Bass: -10 dBat 100 Hz, Treble: – 10dB at 10 kHz
Controls
Mastervolume control
Remotevolume control
Bass tonecontrol, Treble tone control
BridgeON/OFF switch
Mono/Stereoswitch
Inputsensitivity switches (Line 1, Line 2, Line 3)
Indicator
Power LED,Protection LED, Signal LED, Peak LED
Other Feature
AutomaticLevel Control, Thermal/Over-current protection
Operating Temperature
-10 to 40C
Case
Black metalcase
Dimensions
150 (W) x 44(H) x 156 (D) mm (5.9” x 1.73” x 6.14”)
Weight
1 kg (2.2lb)
