TOA Electronics D-001R Line Input Module with DSP

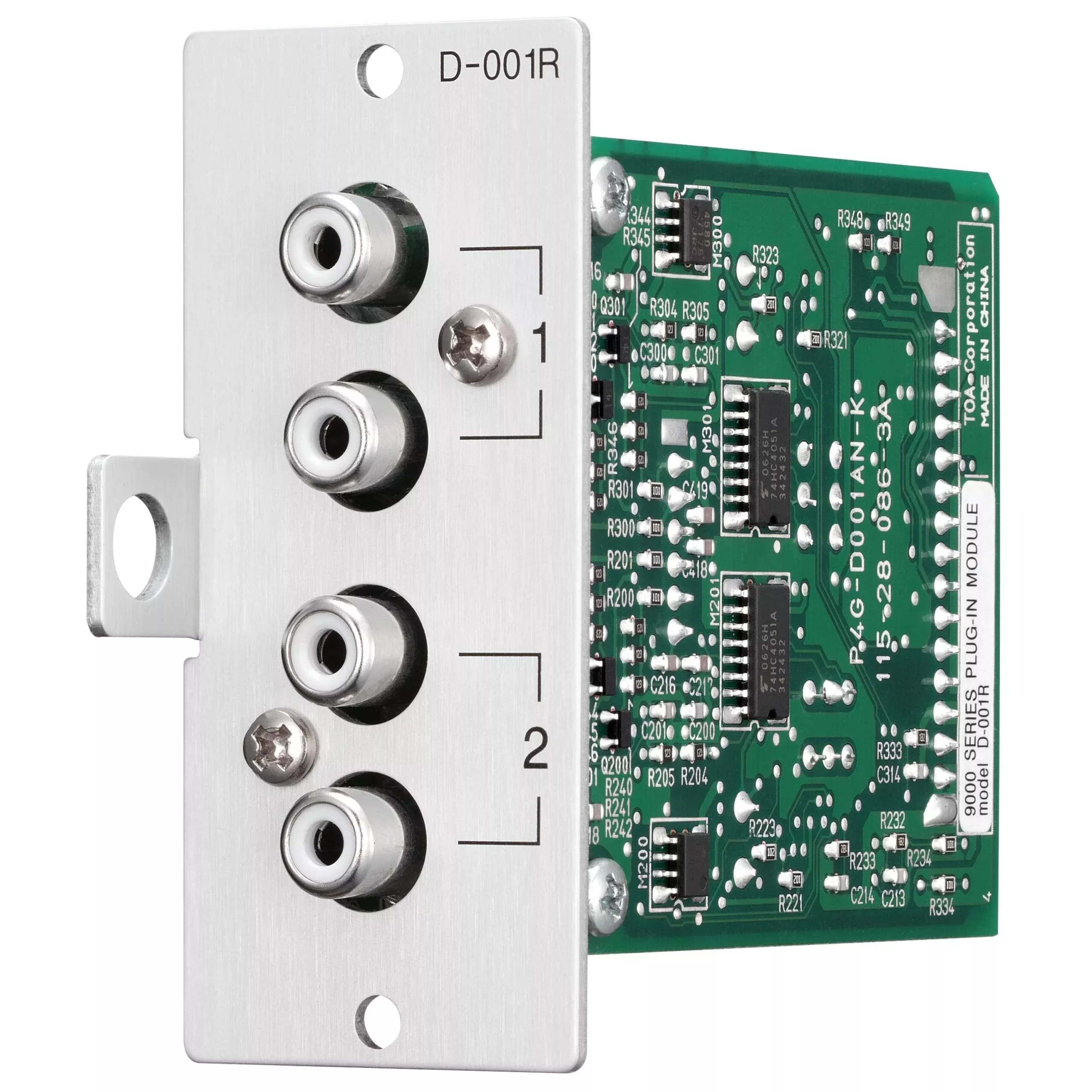

The D-001Ris a line input plug-in module designed for use with the 9000 Seriesamplifiers. It has 2-channel unbalanced inputs of RCA jacks. Input signals toboth channels are mixed together. The D-001R can process effect forTONE/EQ/COMPRESSOR to two inputs independently.
TechnicalSpecifications
Power Source
+24 V DC,-24 V DC, +6 V DC
Current Consumption
20 mA (at+24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)
Input
2 channels,2RCA/ch mixed, 10 k, unbalanced, RCA pin jack
Input Sensitivity
-60, -54,-48, -42, -36, -30, -24, -18, -10 dB* (selectable)
Frequency Response
20 Hz 20kHz, +1, -3 dB
Total Harmonic Distortion + N
0.008 % (at1 kHz, 20 Hz 20 kHz BPF, Input sensitivity: -10 dB)
S/N Ratio
Over 70 dB(at 20 Hz 20 kHz BPF, Input short, Input sensitivity: -10 dB)
Cross Talk
Over 75 dB(at 20 kHz, Input sensitivity: -10 dB)
A/D Converter
24 bit ADC
Sampling Frequency
48 kHz
Tone Control
Bass: -12 dB(at 100 Hz)
Treble:%%p12 dB (at 10 kHz)
Parametric Equalizer
10 bands,Frequency: 20 Hz 20 kHz, 31 points, Variable range: -12 dB, Q: 0.3 5
High-pass Filter
-12 dB/oct,Variable frequency range: 20 Hz 20 kHz, 31 points
Low-pass Filter
-12 dB/oct,Variable frequency range: 20 Hz 20 kHz, 31 points
Compressor
Depth: 1 5
Finish
Panel:Aluminum, hair-line
Dimensions
35 (W) – 78(H) – 91.5 (D) mm (1.38″ – 3.07″ – 3.6″)
Weight
82 g (0.18lb)
