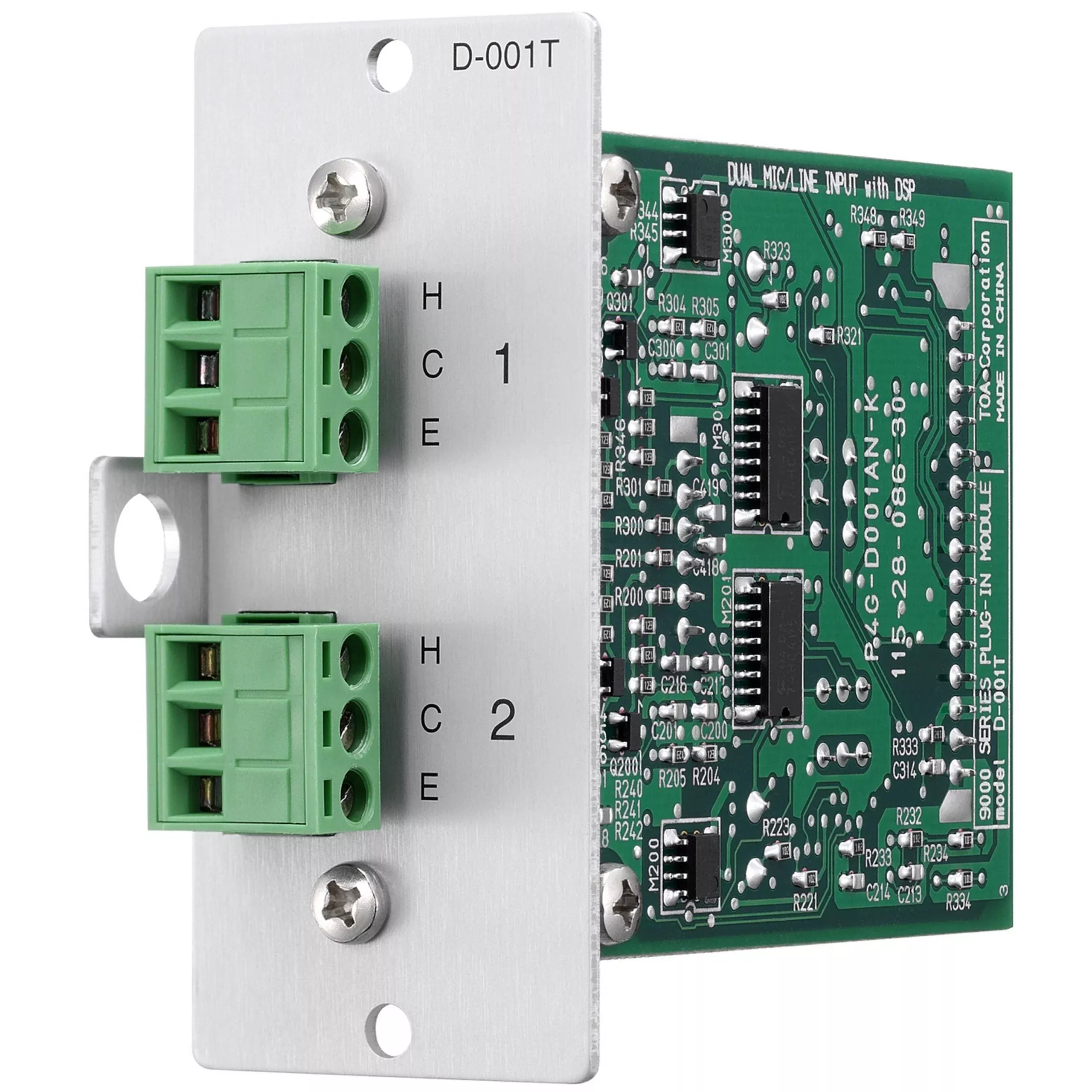

TOA Electronics D-001T Dual Mic/Line Input Module with DSP
The D-001Tis a plug-in module designed for use with the 9000 Series amplifiers and canprovide two independent balanced inputs. The D-001T can handle signals rangingfrom microphone level to line level by controlling their input sensitivity in 9increments from -60 dB to -10 dB. Phantom power (+24 V) can be supplied forcondenser microphone use. The D-001T can process effect for TONE/EQ/COMPRESSORto two inputs independently.
TechnicalSpecifications
Power Source
+24 V DC,-24 V DC, +6 V DC
Current Consumption
20 mA (at+24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)
Input
2 channels, 3k (when the phantom power is ON)/10 k (when the phantom power is OFF),electronically-balanced, removable terminal block (3 pins)
Input Sensitivity
-60, -54,-48, -42, -36, -30, -24, -18, -10 dB* (selectable)
Frequency Response
20 Hz 20kHz, +1, -3 dB
Total Harmonic Distortion + N
0.008 % (at1 kHz, 20 Hz 20 kHz BPF, Input sensitivity: -10 dB)
Input Equivalent Noise
Under -112dB (at 20 Hz 20 kHz BPF, Input short, Input sensitivity: -60 dB)
S/N Ratio
Over 73 dB(at 20 Hz 20 kHz BPF, Input short, Input sensitivity: -10 dB)
Cross Talk
Over 75 dB(at 20 kHz, Input sensitivity: -10 dB)
CMRR
Over 62 dB(at 1 kHz, Input sensitivity: -60 dB)
A/D Converter
24 bit ADC
Sampling Frequency
48 kHz
Tone Control
Bass: -12 dB(at 100 Hz)
Treble:%%p12 dB (at 10 kHz)
Parametric Equalizer
10 bands,Frequency: 20 Hz 20 kHz, 31 points, Variable range: -12 dB, Q: 0.3 5
High-pass Filter
-12 dB/oct,Variable frequency range: 20 Hz 20 kHz, 31 points
Low-pass Filter
-12 dB/oct,Variable frequency range: 20 Hz 20 kHz, 31 points
Compressor
Depth: 1 5
Phantom Power
+24 V DC
Finish
Panel:Aluminum, hair-line
Dimensions
35 (W) – 78(H) – 91.5 (D) mm
Weight
82 g
