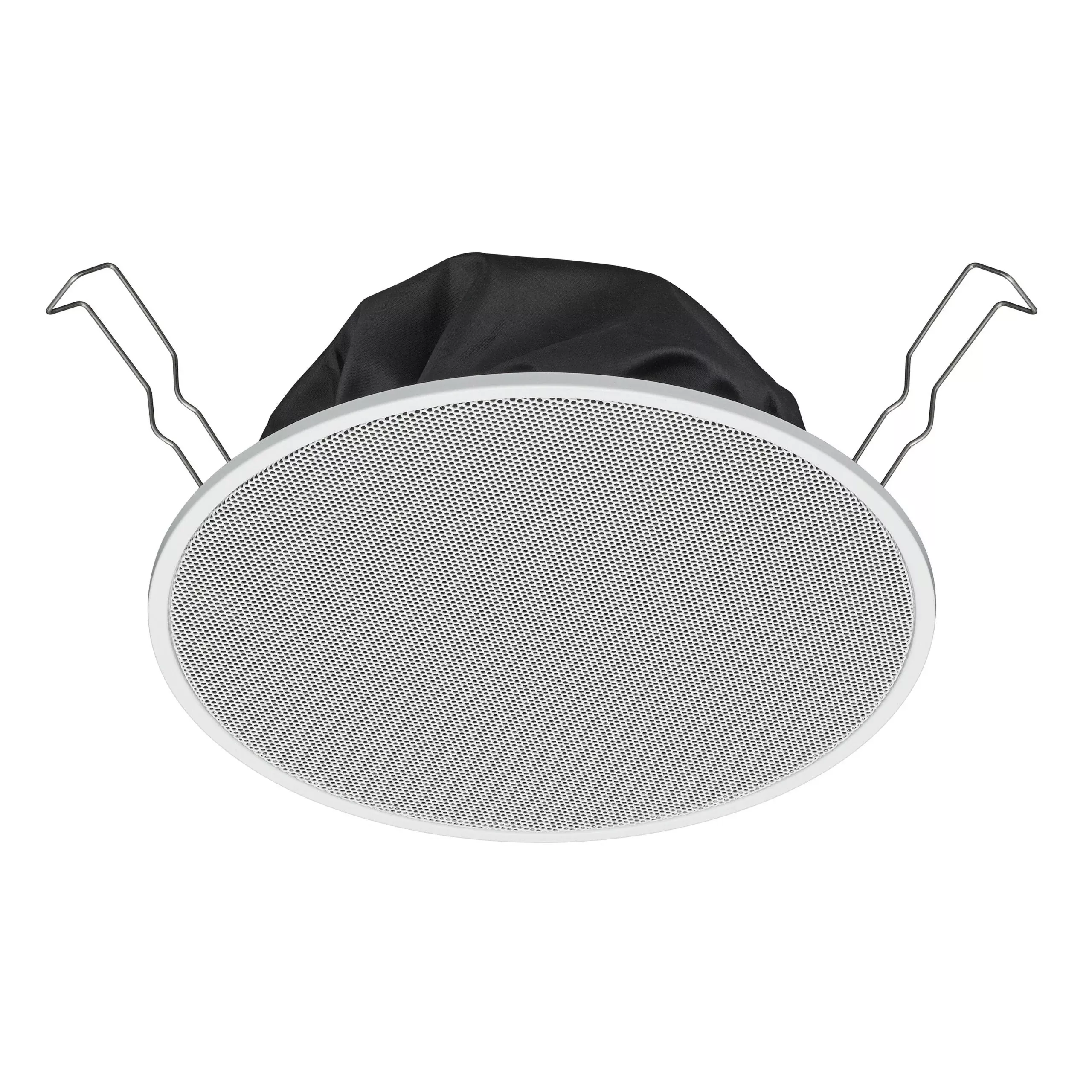

TOA Electronics PC-2360 6 Inch Ceiling Mount Speaker, White
All metallicconstruction, ideal for use in a voice alarm system or BGM system. It featurespring clamp mechanism for easy mounting to the ceiling. The input impedancecan be easily changed by changing the tap position of the transformer. Thepush-in type input terminal block makes cable connection easy and allow bridgewiring.
TechnicalSpecifications
Rated Input
6 W (100 Vline), 3 W (70 V line)
Rated Impedance
100 V line:1.7 k (6 W), 3.3 k (3 W), 6.7 k (1.5 W), 13 k (0.8 W)
70 V line:1.7 k (3 W), 3.3 k (1.5 W), 6.7 k (0.8 W), 13 k (0.4 W)
Sensitivity
94 dB (1 W,1 m) (500 Hz – 5 kHz, pink noise)
Frequency Response
60 Hz – 20kHz (peak -20 dB)
Speaker Component
16 cm(6″) cone-type
Operating Temperature
-10 C to +50 C (14 F to 122 F)
Dimensions for Fixing Hole
Mountinghole: 200-3 mm (?7.87″-0.12″)
Ceilingthickness: 5 – 25 mm (0.2″ – 0.98″)
Speaker Mounting Method
Spring clamp
Applicable Cable
Solid wire:0.5 – 3 mm (AWG 20 – 12)
Connection
Push wireconnection (bridging terminal-2 branch type)
Finish
Frame: Steelplate, white (RAL 9016 equivalent), paint
Grille:Steel net, white (RAL 9016 equivalent), paint
Dimensions
230 – 76(D) mm (?9.06″ – 2.99″)
Weight
740 g (1.63lb)
Accessory
Paperpattern
