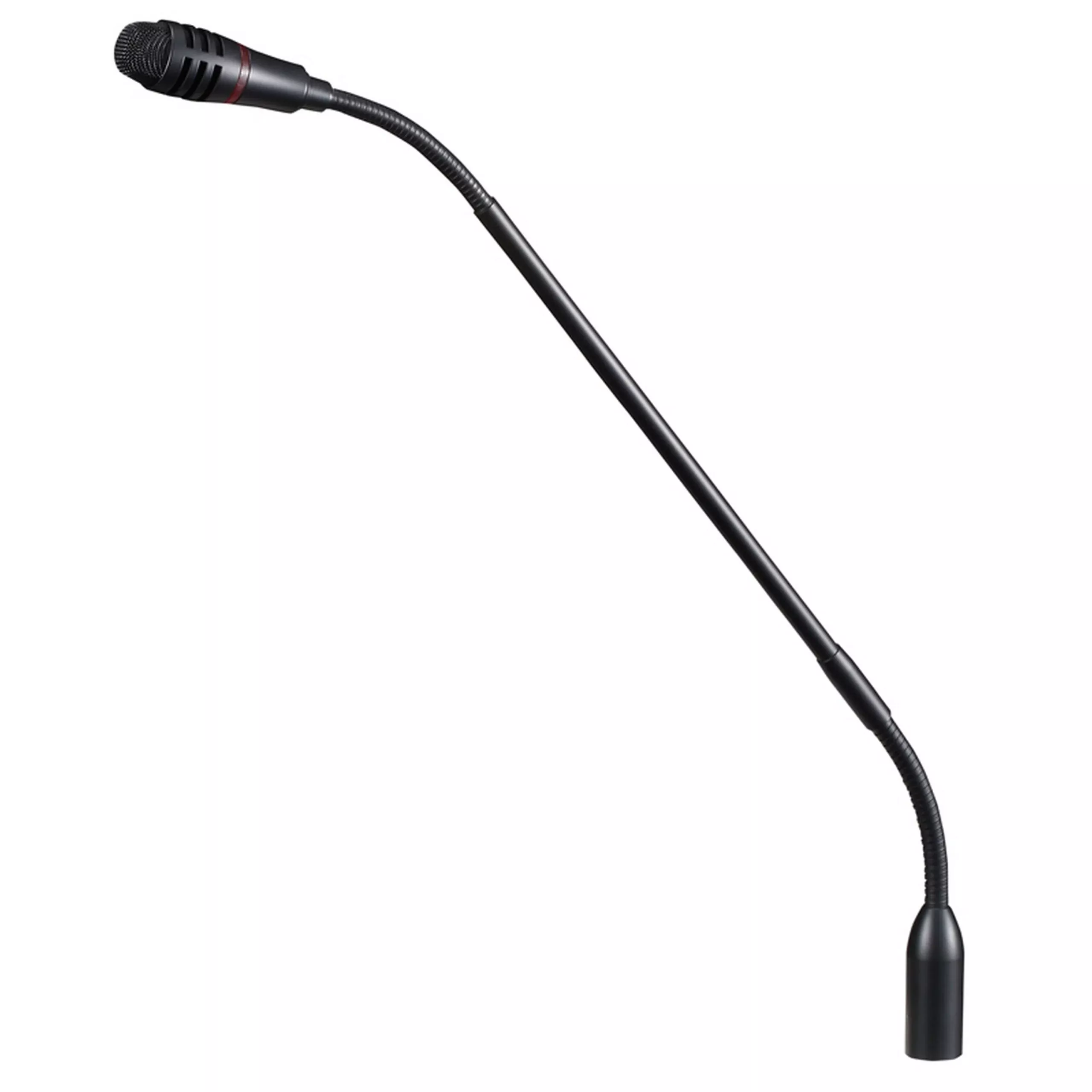

TOA Electronics TS-923 Standard Unidirectional Microphone Unit
The TS-923Microphone is a dedicated component of the Infrared Conference System’sChairman unit and Delegate unit. Its mic head is equipped with an illuminateddisplay ring that allows the status of the units in use to be monitored at aglance. Its gooseneck has two flexible parts, making it possible to adjust themicrophone to an optimal position for the user.
TechnicalSpecifications
Type
Electretcondenser microphone
Directivity
Unidirectional
Rated Impedance
1.4 k
Rated Sensitivity
-37 dB (1kHz 0 dB = 1 V/Pa)
LED Indicator
Speechindicator (ring type) Red
Frequency Response
100 Hz – 13kHz
Output Connector
Combinedtype of XLR-4-32
Flexible Part
2 parts
Operating Humidity
90 %RH orless (no condensation)
Finish
Body:Aluminium, black, semi-gloss, paint
Shaft:Copper alloy, black, semi-gloss, paint
Length
470 mm (1.54ft)
Weight
130 g (0.29lb)
