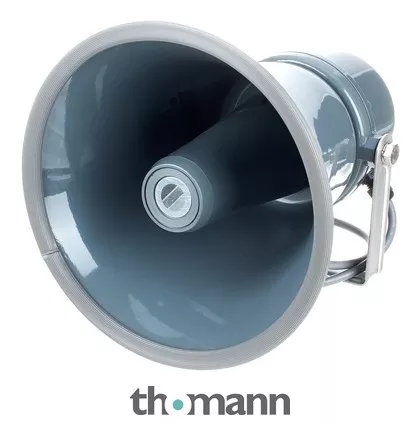

Loudspeaker
- Impedance: 20 Ohm
- Power rating: 15; 10; 5; 3; 1 W / 20 Ohm
- Sound pressure: 107 dB (1 W / 1 m) @ 1144 Hz
- Diameter: 214 mm
- Depth: 231 mm
- IP 65
- Pressure chamber horn loudspeaker with 100 V transformer
- Five-stage level adjustment for 100 V model via knob
- Additional 20 ohm setting possible
- The third wire (green-yellow) is the earthing of the metal housing
- High sound pressure and wide range of frequency response guarantee excellent voice quality
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2011
- Item number266594
- Sales Unit1 piece(s)
- Colour Gray
- RMS Power 1 W
- Impedance 20 Ohms
- Transformer Yes
- IP Classification 66
- Wall Mount Yes
- RAL7012
- Amplificationpassive
- TypePassive
- Width214 mm
- External Width [mm]214 mm
- External Height [mm]214 mm
- Height214 mm
- Depth231 mm
- External Depth [mm]231 mm
- Weight in kg0,8 kg
- Weight1,4 kg
- Number of Ways1
- Max. Sound pressure117 dB
- Sound Pressure in dB117 dB
- TransformatorYes
- 100V Connetors15/10/5/3/1
- 100V power tappings15/10/5/3/1
- ConnectorCable
- HousingPlastic
- Cabinet/IntallationCabinet
- IP Class66
- Selling per Piece/PairPiece
