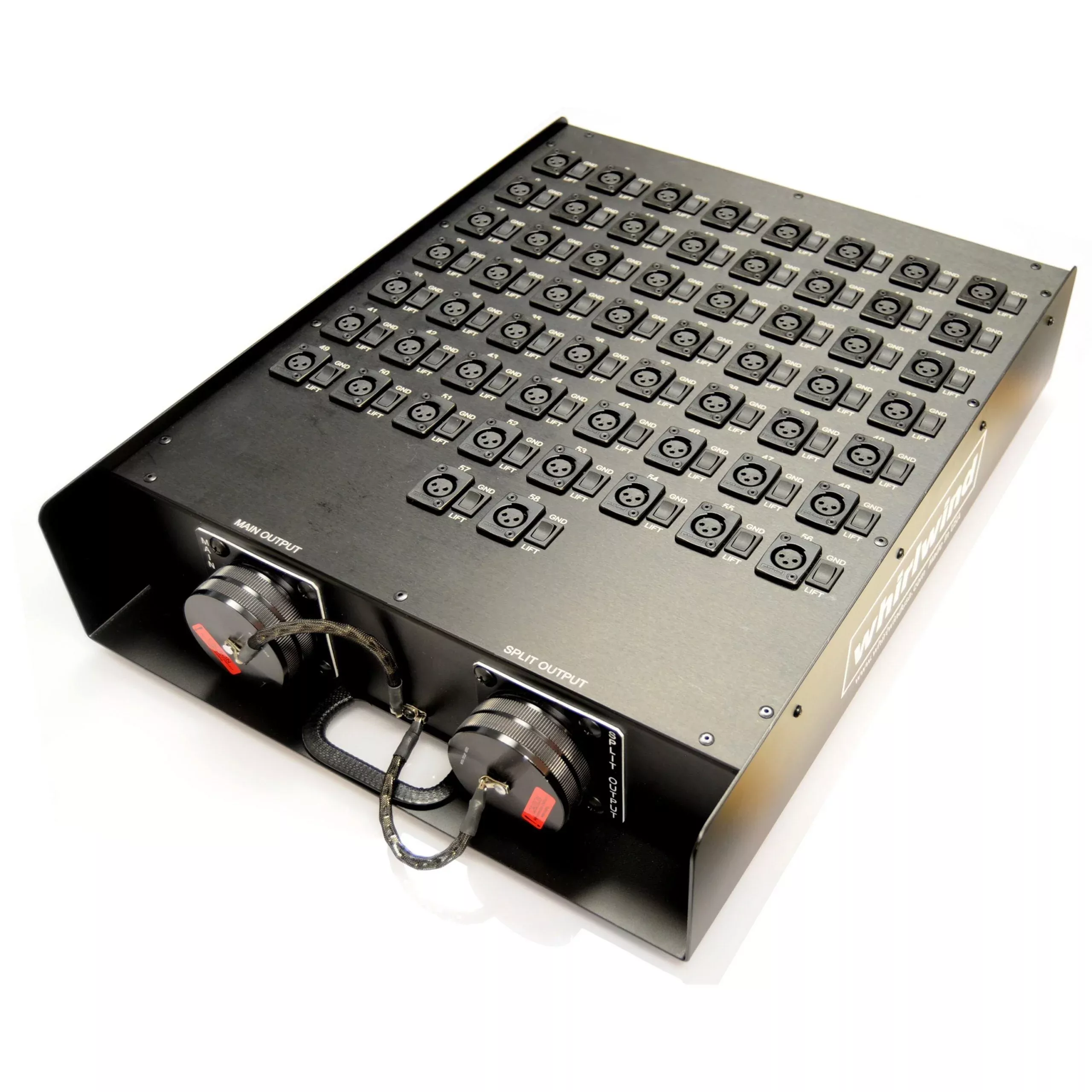

Whirlwind CSR58PNRRP Concert Microphone Splitting System, 12U Parallel Split, 58 XLRF
Microphoneinputs are wired directly to one multipin (Main Out) and paralleled or wiredthrough Whirlwind TRSP-1F transformers to a second multipin (Split Out). Eachmicrophone input has a ground-lift switch on the Split Out, and return linesare hardwired to both multipins.
Cables andfanouts to connect the system may be selected from Whirlwind’s Multiline CableAssemblies and FM Series fanouts.
Concert 40:
32 WC3Ffemale XLR microphone inputs and 8 WC3M male XLR returns.
Stage Box:
CSB40PRP(parallel split, replaceable pin MASS)
CSB40TRP(transformer split, replaceable pin MASS)
Rack Panel -8-U high:
CSR40PRP(parallel split, replaceable pin MASS)
CSR40TRP(transformer split, replaceable pin MASS)
Concert 58:
48 WC3F femaleXLR microphone inputs and 10 WC3M male XLR returns.
Rack Panel -10-U high:
CSR58PRP(parallel split, replaceable pin MASS)
CSR58TRP(transformer split, replaceable pin MASS)
Concert 58NR:
58 WC3Ffemale XLR microphone inputs (no returns)
Rack Panel -12-U high:
CSR58PNRRP(parallel split, replaceable pin MASS)
CSR58TNRRP(transformer split, replaceable pin MASS)
