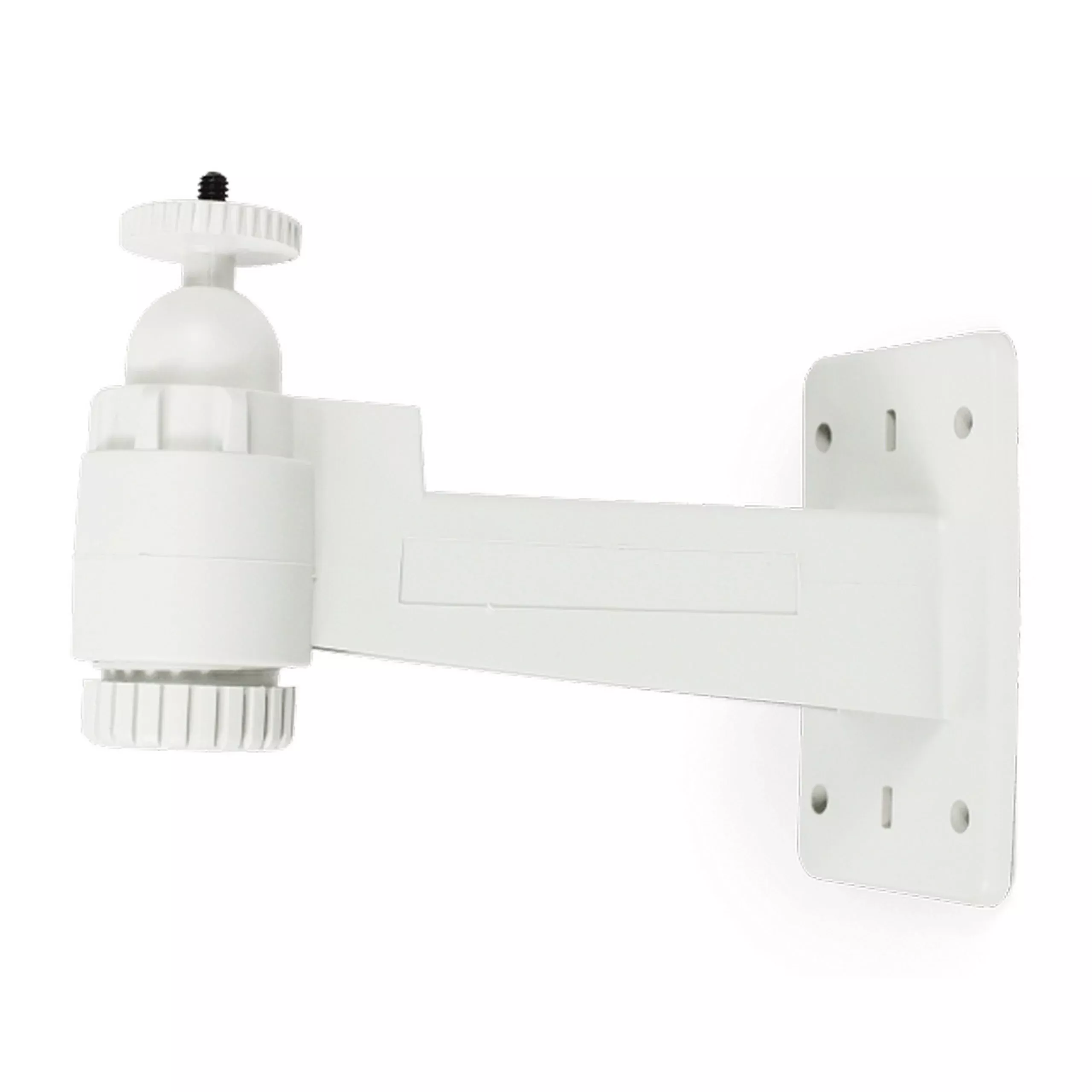

Williams AV BKT 031 Wall/Ceiling Mounting Bracket
A sturdierand more robust option for Williams Sound IR mounting hardware and it mountsdirectly to the junction box when running conduit. It features a ball andsocket design with 360 swivel and 90 tilt capability, 1/4”-20 male studmount, 7” extension, and the ability to conceal connected cables. This mount isable to support greater weight load, and can also be inverse mounted.
TechnicalSpecifications
Type
Wall PlateMount
Construction
EngineeredPlastic
Support Weight
10 lbs(4.5kg)
Swivel
360
Tilt
90
Thread Size
1/4”-20
Extension
7” (177.8mm)
Shipping Dimensions
7.5 x 5 x 3”(190.5 x 127 x 76.2mm) (WxHxD)
Weight
0.6 lb(0.23kg)
Color
Light Gray
Finish
Fused Epoxy
Package Weight
0.65 lb
Box Dimensions (LxWxH)
8.2 x 5.3 x3.2”
